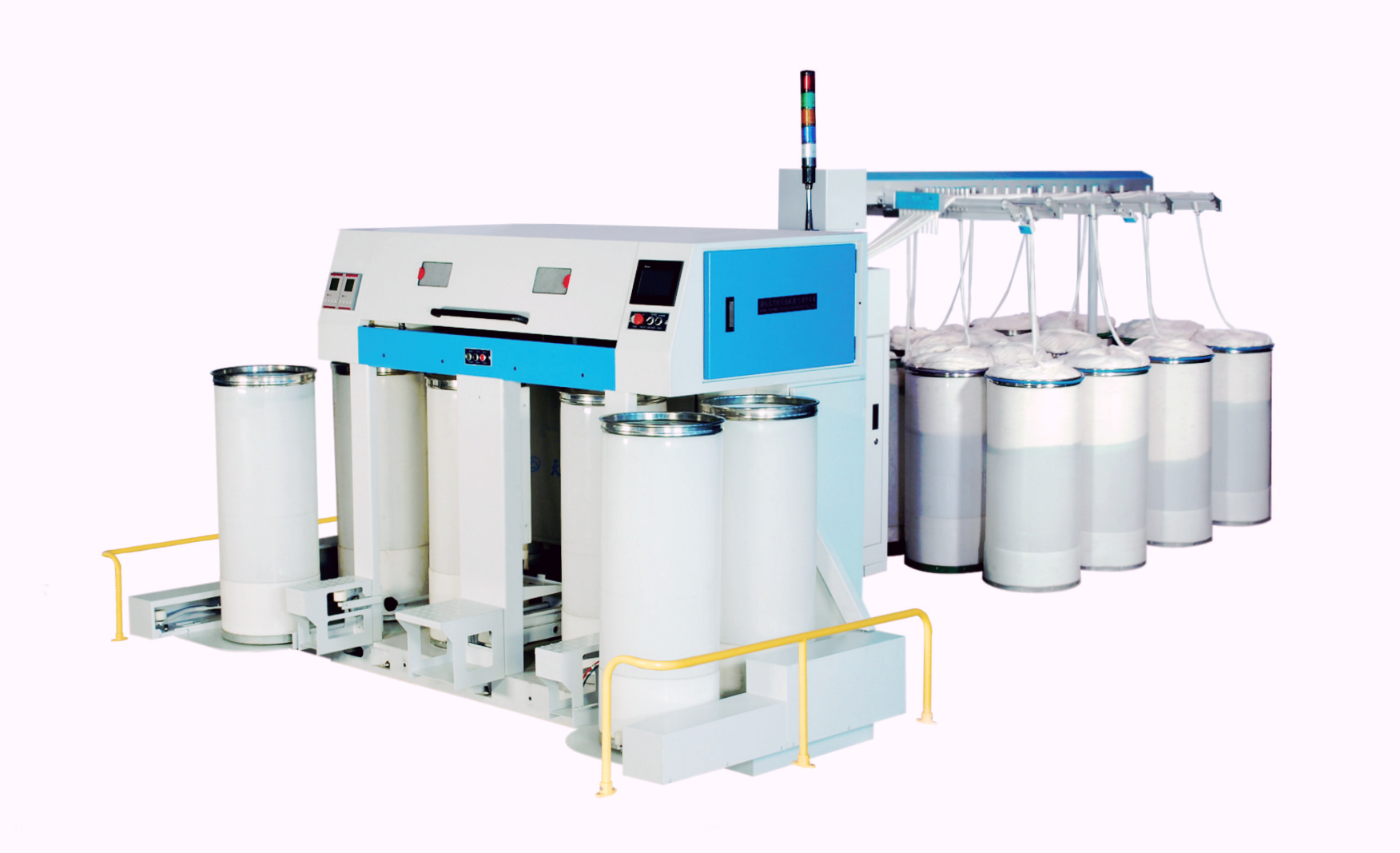

TMFD81L

TMFD81L

Salient Features:
1.UQA short-term autoleveller, driving and control system are separate for each head, to achieve optimum results.
2.Use programmable logic controller (PLC), touch screen display, frequency control of motor speed, etc.
3.Differential box is specially manufactured, two steps integration, to get high dynamic response and leveling efficiency.
4.Compact structure, rational lay-out, good interference-resist capability.
5.3 over 3 double zone curvilinear draft system with guiding top-roller and pressure bar.
6.Adjustable draft ratios for coiler, front draft, back draft and creel, bring more flexibility to the machine for various fibers.
7.Available for automatic filter cleaning, automatic can changing and sliver breaking for full can.
8.Spring loading is for sliver feeding measure, good dynamic response and high accuracy.
9.Preset intranet interface is convenient for central management. Technical specifications:

Range of Application Fiber length up to 76mm combed and carded cotton, chemical fiber and blends
Number of Delivery Two
The highest output speed 800m/min
Doubling 6~8 slivers
Roller Dia. Top Roller ¢34 ¢34 ¢34mm
Bottom Roller ¢40 ¢35 ¢35mm
Drafting System 3 over 3 double zone curvilinear drafting system with pressure bar and guiding top-roller.
Total Draft (between 1st and 3rd rollers) 5.67~9.8
Can Size Input ¢400 ¢500 ¢600mm Height 1100mm or 900mm
Output ¢350 ¢400 ¢500mm Height 1100mm or 900mm
Feeding Form Overhead creel lengthwise positive feeding
Main Motor 4.7Kw
Power of suction blower 1.5Kw
Power of servo motor 2*1.5Kw


Product components:
TMFD81L
